AC Coupled Energy Storage System: As the world rapidly shifts toward renewable energy, managing power generation, storage, and consumption efficiently is critical. Solar and wind power are clean but intermittent. That’s where energy storage systems (ESS) play a key role. Among the most practical configurations for integrating storage into existing systems is the AC coupled Energy storage system.
This blog explores AC coupled Energy storage systems in detail—what they are, how they work, their advantages, disadvantages, and where they fit best in modern energy infrastructure.
What is an AC Coupled Energy Storage System?

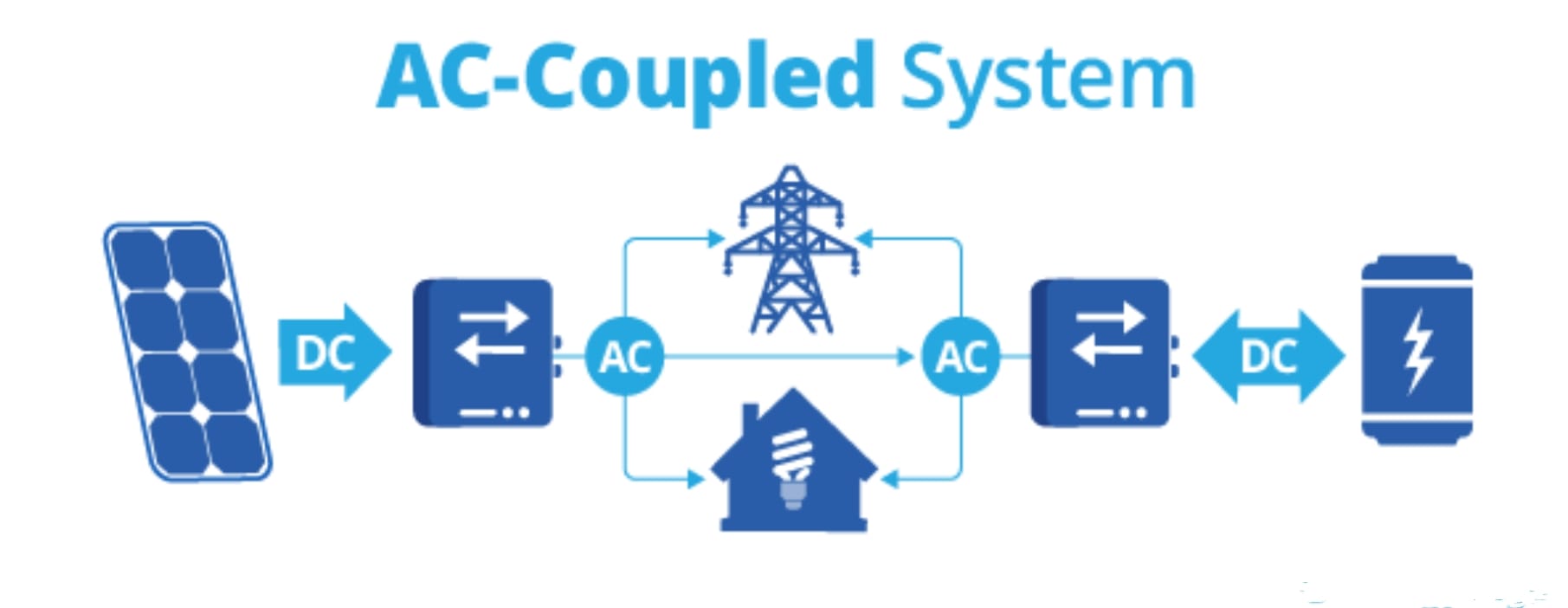

An AC coupled Energy storage system connects batteries to the grid or a solar PV system via an inverter on the AC side—as opposed to DC coupling, where batteries share a common inverter with the PV system.
In AC coupling, both the solar inverter and the battery inverter operate independently but feed into the same alternating current (AC) bus. This makes it easier to retrofit batteries into an existing grid-tied solar system or to operate in hybrid or microgrid environments.
How Does AC Coupling Work?
Here’s a simplified workflow of an AC coupled system:
- Solar panels produce DC power, which is converted to AC by a solar inverter.
- This AC power either goes to the grid or is consumed by local loads.
- A separate battery inverter (bi-directional) connects the battery system to the AC bus.
- The battery inverter handles charging (from grid or solar) and discharging (to supply power when needed).
The Energy Management System (EMS) coordinates energy flow, prioritizing self-consumption, peak shaving, or backup supply.
Key Components of an AC Coupled Energy Storage System
- Solar PV System
- String Inverter (or Microinverters)
- Battery Storage Unit
- Battery Inverter / Hybrid Inverter
- Energy Management System (EMS)
- Smart Meter / CTs
- Grid Connection (optional in off-grid mode)
Advantages of AC Coupled Energy Storage Systems
✅ Easy Retrofitting
AC coupling is perfect for adding storage to existing grid-tied PV systems. There’s no need to replace or modify the original solar inverter.
✅ Modular & Scalable
Battery capacity and power rating can be scaled independently of the solar system. This flexibility is crucial for growing energy needs.
✅ Higher Efficiency in Off-Grid Mode
In AC microgrids, AC coupling is more efficient because loads, generation, and storage all operate on the AC side—avoiding multiple DC-AC conversions.
✅ Seamless Backup Power
With proper control systems, AC coupled setups can provide uninterruptible power supply (UPS) functionality during grid outages.
✅ Technology-Agnostic
You can use different brands for solar and battery inverters, giving project owners freedom of choice.
Challenges and Limitations for AC Coupled Energy Storage System
⚠️ Multiple Conversions Lead to Losses
DC → AC (solar inverter) → DC (battery charge) → AC (load/grid) involves extra conversion steps, resulting in lower round-trip efficiency compared to DC coupling.
⚠️ More Complex Control & Synchronization
Two inverters must work in harmony. This requires advanced EMS and precise control algorithms, especially for grid-forming or islanding applications.
⚠️ Higher Upfront Cost
More hardware (separate inverters) and control systems can mean higher CapEx, though the ease of installation might offset some of these costs.
⚠️ Limited DC-Only Charging
You can’t charge batteries directly from the PV’s DC power. This could be a problem when grid power is down and solar output is high.
Use Cases of AC Coupled Energy Storage Systems
✅ Residential Retrofits
Homeowners with existing solar PV systems can add storage without modifying their inverter setup.
✅ Commercial Buildings
Businesses seeking peak shaving, demand charge reduction, or backup power benefit from the modularity of AC coupled systems.
✅ Microgrids & Off-Grid Projects
Rural or island microgrids often use AC coupled configurations to manage multiple energy sources and loads.
✅ Utility-Scale Hybrid Plants
Some utility-scale ESS installations use AC coupling to enable independent control of solar and storage assets.
AC Coupling vs. DC Coupling: Quick Comparison Table
| Feature | AC Coupled | DC Coupled |
|---|---|---|
| Inverter Setup | Separate solar & battery inverters | Shared hybrid inverter |
| Efficiency | Lower due to more conversions | Higher due to fewer conversions |
| Retrofit Friendliness | Excellent | Poor |
| Complexity | Higher (multiple devices) | Lower (single device) |
| Scalability | High | Moderate |
| Charging from PV During Outage | No (unless advanced EMS) | Yes |
| Battery Sizing Flexibility | Higher | Limited to inverter capacity |
Recent Technological Trends
- Grid-forming inverters are now being integrated into AC coupled systems, allowing them to maintain grid frequency in island mode.
- Smart EMS algorithms are improving system efficiency and coordination between inverters.
- Hybrid inverters with AC-coupled inputs are emerging, combining the best of both worlds.
- Battery vendors are offering plug-and-play AC coupled kits, making installations faster and more standardized.
Conclusion: Is AC Coupling Right for You?
AC coupled Energy storage systems offer unmatched flexibility, especially when integrating with existing solar setups or in microgrid environments. While the efficiency is slightly lower due to extra conversion steps, the ease of retrofitting, modular design, and robust backup power capabilities make AC coupling a strong contender in the energy storage space.
As the renewable energy landscape evolves, AC coupled systems will continue to play a crucial role—especially in applications where flexibility, scalability, and compatibility matter more than absolute efficiency.
